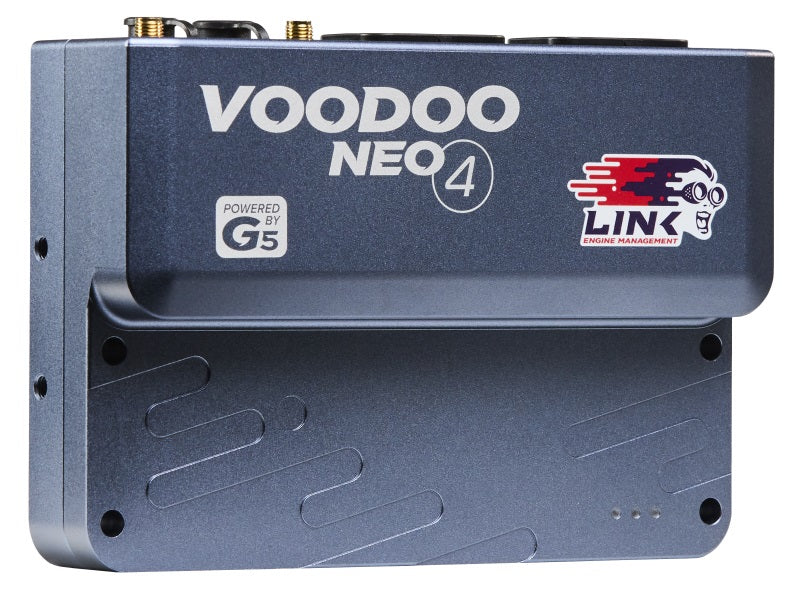

G5 Voodoo Neo 4

• G5 Voodoo Neo 4



  The next generation of engine management for many more engines.




  The G5 Voodoo Neo 4 can run:

  6 cylinders port or direct injection and direct spark, or,

  4 cylinders with direct/port staged injection, and direct spark


  The G5 Voodoo processing units are the perfect choice for professional-level motorsport.







  The G5 Voodoo Neo 4 works on a variety of vehicles,

  New comms module: Up to 10x faster log file download speeds, from minutes to seconds, and enhanced WiFi and GPS
• Built in ethernet
• 1GB onboard logging in data storage unit
• 1 onboard wideband
• CNC case, sealed enclosure
• 68 pins total (Link A and B 34 pin superseal connectors)
• K-line support
• New WEIPU CAN connector, which supplies power for the CAN-bus.
• Highly customisable IO, using 2 types of multi purpose pins:
  ADIO pins and Aux./Digital-Input pins. These pins can act as inputs or outputs.
• Can now power up via the USB cable, making firmware updates and setting up the initial tune a breeze at your PC.
• Runs on the same highly acclaimed PC Link software as G4X, meaning you don’t need to learn a new software package. You can open both G4X and G5 log and map files in the same software (G4X Map can also be loaded into a G5 Voodoo Pro)
• More mounting options than ever, with through holes and threaded mount holes on the side and underneath.
• All NEOs are direct injection capable, including staged port-DI on NEO 4 and 6.

  Inputs/Outputs

  • Control up to 6 cylinders with port or direct injection and direct spark, or 4 cylinders with direct/port staged injection, thanks to:
    • 8 injector pins
    • 6 ignition pins
    • 12 aux. output pins
    • (4 Aux pins are shared with 4 DI Pins. You can only use each pin for either Injection or DI, not both at the same time.)
    • 6 ADIO pins
  • Highly customisable IO, using 2 types of multi purpose pins: ADIO pins and Aux./Digital-Input pins. These pins can act as inputs or outputs.
  • ADIO are a unique pin type. ADIO can act as an Aux Output (switched or PWM), as an Analogue Input, or as a Digital Input, but cannot read PWM/frequency.
  • Neo 4 has Aux/DI pins which are used as either an Aux pin, or a Digital Input pin. They can read PWM/frequency.
  • Any unused injector/ignition pins can be used as an auxiliary pin
  • All ignition and auxiliary pins are back feed protected.
  • 3 analog inputs
  • 10 digital inputs
  • 4 temperature inputs
  • 2 knock inputs
  • 2 trigger inputs
  • 1 x wideband lambda controller
  • Dual H-Bridge e-throttle control
  • Dedicated ignition switch pin
  • 5v sensor supply
  • CAN 1 via Weipu connector. CAN connector now supplies power and ground.

  Communications

  • USB-C (cable included)
  • Power over USB
  • WiFi: Connect directly to the ECU via built-in Wifi Access Point, or add it to an existing network (antenna included)
  • CAN: New WEIPU connector supplies power for CAN devices
  • Ethernet: Built in ethernet which can function like USB. Also adds the ability to connect to the ECU over a network.
  • GPS: Functional when GPS antenna connected (antenna included)

  Data Logging

  • 1gb logging capacity
  • Logging over WiFi
  • 100kHz max. total logging rate
  • 250 logging channels

  Size & Weight

  • Length: 107mm (4.21 inches)
  • Width: 158mm (6.22 inches)
  • Max side height: 45mm (1.77 inches)
  • Weight: 730grams (25.75 ounces)

  Mounting

  • 4x M5 threaded mount holes on the sides for bracket mounting
  • 4x M5 threaded mount holes on the underside for clean mounting
  • 4 x 5.5mm unthreaded through holes for mounting through (designed for use with M5 bolts)

  Connectors

  A Header	Link Pin Kit A	TE Superseal 1.0
  B Header	Link Pin Kit B	TE Superseal 1.0
  Wi-Fi	Wi-Fi Antenna	RP-SMA (reverse polarity)
  GPS		SMA
  USB		USB Type-C
  Ethernet		WEiPU SF810B/P8
  CAN1		WEiPU SF610B/P4

Requires “A” & “B”  connector kits (not supplied).
